When you first start building a multi-stack architectures in the AWS CDK, passing resources between stacks feels like magic. Lets say when you instantiate a VPC in your network stack, pass it as an argument to your database stack, and the CDK seamlessly handles the rest:

In such situation, the CDK abstracts away the complexity of AWS CloudFormation by automatically generating a CfnOutput in the NetworkStack and using an Fn::ImportValue in the DatabaseStack. It works flawlessly until you need to change your infrastructure.

CloudFormation export lock (Structural Deadlock)

When application grows, and you realize you need to modify or replace the VPC Configuration. You update your code and run cdk deploy. Suddenly, CloudFromation throws

Export NetworkStack:ExportsOutputRefVpc... cannot be updated as it is in use by DatabaseStack

This is because DatabaseStack depends on the exact export name and value from NetworkStack, CloudFormation strictly protects the integrity of your infrastructure by blocking any modifications to that export.

Why it's a Nightmare to fix:

Resolving a CloudFormation export lock natively requires a tedious, multi-step deployment that breaks continuous delivery pipelines:

- Step 1: Modify the consumer stack (DatabaseStack) to completely stop using the imported value (often requiring temporary or dummy values) and deploy it.
- Step 2: Modify the producer stack (NetworkStack) to update or remove the value and deploy it.
- Step 3: Re-introduce the new, correct value back into the consumer stack and deploy it a third time.
If this happens in a production environment with stateful resources like databases or file systems, this transitions from annoying to genuinely terrifying. We need a way for stacks to share information without signing a binding, unbreakable contract.

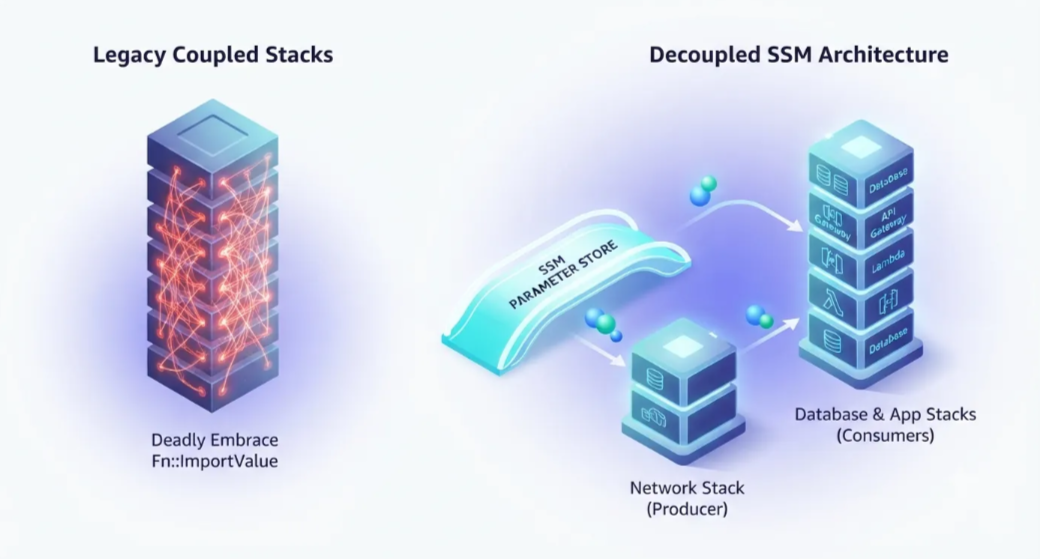

The Evolution: Introducing the SSM Store Pattern

We need to let these two stacks communicate without being tightly coupled. In AWS, we can use a middleman i.e., SSM Parameter Store.


Step 1: The NetworkStack creates the VPC, writes the vpcId to the SSM Parameter Store.
Step 2: The DatabaseStack reads the vpcId from the SSM Parameter Store.
By doing this, you have successfully decoupled the two stacks. If the NetworkStack needs to update the VPC, it can simply write the value to the SSM Parameter Store. The DatabaseStack will see the update the next time it runs. There is no hard link, no “Import Value” error, and no more deployment bottlenecks.

The Producer: NetworkStack

In this implementation, we create a VPC and publish its vpcId to the SSM Parameter Store. Note the use of a descriptive path—this is a best practice to avoid collisions if you manage multiple environments.

- Path Naming: I used /infrastructure/network/vpc-id. Remind your readers that consistency here is key. If the DatabaseStack expects /network/vpc-id but you published to /infrastructure/network/vpc-id, the lookup will fail.
- The “Fire-and-Forget” Nature: Notice that this class has no knowledge of any consumer. It does not import any other stacks, and it doesn’t need to be updated if the DatabaseStack changes. This is the decoupling in action.

Now that we have established the NetworkStack as our producer, the DatabaseStack acts as the consumer. Its job is to perform a runtime discovery of the network configuration.

By using ssm.StringParameter.valueForStringParameter, the DatabaseStack doesn't need a direct reference to the NetworkStack object; it simply asks the SSM Parameter Store, "What is the VPC ID for this path?"

The Consumer: DatabaseStack

This stack is now completely decoupled. It doesn’t know who created the VPC, nor does it care. It simply trusts that the value exists at the specified address.

- fromVpcAttributes: This is the key method. It allows the CDK to "rehydrate" a construct from existing information (the ID) rather than requiring the actual Vpc object instance.
- The “Lookup” Risk: Remind your readers that valueForStringParameter requires the parameter to be populated before this stack is deployed. This is exactly why we use databaseStack.addDependency(networkStack) in our main entry point—to ensure the producer has finished its job before the consumer tries to look up the "Post-it note."
- AZ Awareness: Notice that we have to provide availabilityZones. Since the SSM parameter only gave us the vpcId, the DatabaseStack still needs to know which AZs to use. If your VPC configuration is dynamic, you might consider publishing the AZs to SSM as well (e.g., in a JSON format or separate parameters).

The App Blueprint: Managing Dependencies

Even though the stacks are decoupled, you should still define the deployment order in your entry point. This ensures that when you run cdk deploy --all, the NetworkStack is processed before the DatabaseStack, which avoids the "Missing Parameter" failure we discussed.

By adding that addDependency line, you get the best of both worlds: architectural decoupling (the stacks don't code-level depend on each other) and deployment safety (the CDK knows the correct order to provision resources).

The Cost of Agility: Handling Orphaned References

When you use the SSM Parameter Store pattern to decouple your stacks, you gain deployment agility but you lose the automatic safety checks and Guaranteed Connection provided by CloudFormation.

If you delete the NetworkStack without first removing or updating the DatabaseStack, you are essentially "pulling the rug out" from under your consumer stack. Here is exactly what happens:

- The Orphaned Reference Scenario: The DatabaseStack still holds a reference to the parameter path (e.g., /app/network/vpc-id). However, because the NetworkStack has been deleted, the SSM parameter no longer exists in the Parameter Store.
- The Deployment Failure:The next time you run cdk deploy for your DatabaseStack, it will attempt to perform a ssm.StringParameter.valueForStringParameter lookup. Because that parameter is gone. This will result in
- Synthesis/Deployment Error: The CDK synthesis or the subsequent CloudFormation update will fail because it cannot resolve the value.
- The “Invalid ID” Error: If you hard-coded the value or if the lookup logic fails silently, your DatabaseStack will try to reference a vpcId that no longer exists in your AWS account. This will cause the DatabaseStack update to fail with an error stating that the VPC ID could not be found or is invalid.

With SSM Pattern, You are now responsible for the architectural integrity. Its up to you to ensure that any consumer stacks are either deleted first or updated to point to a new different network resource.

The Cost of Agility: Missing Parameters

If you try to deploy the DatabaseStack before the NetworkStack has finished creating the SSM parameter, your deployment will fail.

When CloudFormation attempts to resolve the SSM parameter value and finds nothing, the stack creation will halt and roll back. You will receive an error resembling: ValidationError: Parameter /app/network/vpc-id not found

Don’t fear this failure, instead use it as a validation gate. Because you are using SSM, you can build safety into your CI/CD Pipline

- Fail-Fast in CI/CD: If your deployment pipeline attempts to deploy the DatabaseStack before the NetworkStack has completed, the pipeline will stop immediately. This is actually a good thing; it prevents your DatabaseStack from entering an indeterminate state.
- The “Bootstrap” Order: You still need to ensure your stacks are deployed in a logical order (Network → Database). Use CDK’s native dependency management (databaseStack.addDependency(networkStack)) to ensure that, even though you are using SSM for cross-stack communication, the CDK still triggers the deployment of the Producer before the Consumer.

Even when using SSM for decoupling, explicitly define dependencies in your CDK App entry point: databaseStack.addDependency(networkStack); This tells CDK to synthesize the NetworkStack first, ensuring your SSM parameters are ready for the DatabaseStack to consume.

The Hidden Costs of Decoupling

1. The “Drift” and “Visibility” Problem
In standard CfnOutput exports, CloudFormation tracks exactly which stack depends on which export. You can go to the CloudFormation Console, look at an export, and immediately see every stack that imports it.

- The Drawback: SSM parameters have no built-in “reverse dependency” tracking. If you look at the SSM parameter, there is no easy way to tell which stacks (if any) are currently consuming that value.
- The Impact: It becomes harder to perform impact analysis. You might hesitate to delete a parameter because you don’t know for sure if a legacy stack is still relying on it.

2. Lack of Type Safety (String-based Fragility)
When you use Fn::ImportValue, the CloudFormation engine handles the pass-through of values internally.

- The Drawback: SSM parameters are stored as plain strings. You are responsible for ensuring that the naming convention (the path) is perfectly matched between the Producer and the Consumer.
- The Impact: A simple typo in the string key (/app/network/vpc-id vs /app/network/vpcid) won't be caught by the compiler or the CDK synthesis—it will only be caught when the stack fails to deploy.

3. Increased Complexity in Multi-Environment Setups
If you are deploying your stacks to dev, staging, and prod simultaneously:

- The Drawback: You have to ensure your SSM paths are unique per environment.
- The Impact: If you aren’t careful, you might accidentally have your prod DatabaseStack reading an SSM parameter from your dev NetworkStack. You must implement a naming strategy that includes the environment (e.g., /${env}/network/vpc-id) to avoid cross-environment pollution.

The “Deadly Embrace” is a harsh reminder that infrastructure, like software, needs to be loosely coupled to remain maintainable. By moving away from rigid Fn::ImportValue dependencies and embracing the SSM Parameter Store pattern, you stop treating your stacks as a single, fragile monolith and start treating them as independent, discoverable services.

The Final Verdict

When should you use this pattern?

- Use SSM when: You have distinct stacks (like Network, Security, and Application) that need to share IDs or configuration values, and you want the ability to deploy them independently without fearing the “Export in use” error.
- Stick to Native Exports when: You have a strictly coupled relationship where the consumer must never exist if the producer is removed, and your deployment lifecycle is simple enough that you don’t mind the strict dependency management.
Infrastructure as Code is not just about the provisioning of resources — it’s about the lifecycle of those resources. Decoupling your stacks is the first step toward building a system that can grow, change, and evolve alongside your application.
